Hot water underfloor heating IDEAL ECO

residentialwith recycled wood panel

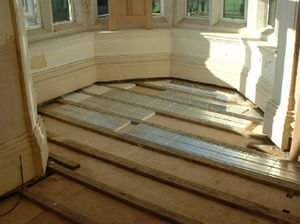

JUPITER IDEAL ECO is the only underfloor heating system in the world designed to be as environmentally friendly as possible. Rather than being made from polystyrene, the 30mm high IDEAL ECO system panels are made from fibrous wood waste. As well as being manufactured from a sustainable material the system also provides acoustic properties where normally additional products or services would be installed. As with the IDEAL EPS system the heating elements are finished with integrated aluminium diffuser plates with an omega shaped pipe channel and are compatible with all types of floor finish. The IDEAL ECO System is delivered in two panel formats, Central Zone (CZ) 250mm pipe centres and Edge Zone (EZ) 125mm pipe centres. As well as the main panel types the system comes with an array of other panel types assist with installation.
