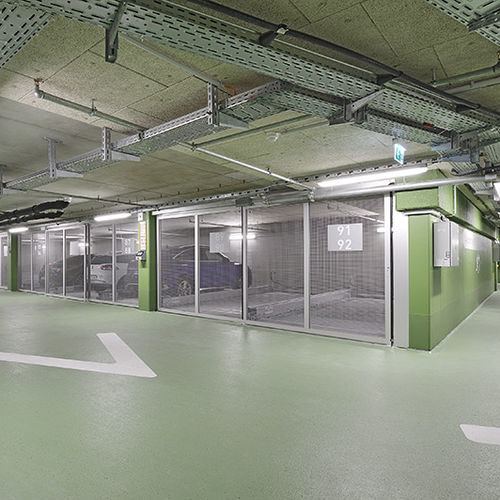

The TrendVario 4100 can be used to park two cars on top of each other; the parking spaces can be shifted vertically or horizontally. A pit is required. The parking space selected is moved to the desired position by means of an automatic control system. An empty space allows independent parking. The system can be installed even in rather confined areas and therefore offers optimum use of space. The access level is secured by doors which can only be opened once the shifting process is completed. Therefore, cars are protected against theft and vandalism. The system offers space from 3 to 29 cars.
SPECIFICATION TRENDVARIO
For 3 to 29 vehicles plus 1 vacant space, variable arrangement of
2 to 15 grids next to each other (2 vehicles over each other)
Total height of standard type: 220 cm
Pit depth of standard type: 200 cm
Vehicle measurement: Heights from 150 to 205 cm,
lengths from 500 to 520 cm
Usable platform width - standard type: 230 cm,
optionally up to max. 270 cm
Standard design: 2.000 kg per parking space,
optional max. 2.600 kg. For single parking spaces even
retroactively upweighting
Horizontal access to all parking levels
User-friendly, high parking comfort
Platform surface: StandardGrip, optional AluLongLife or EasyWalk
independent parking
Operation: dialog display
