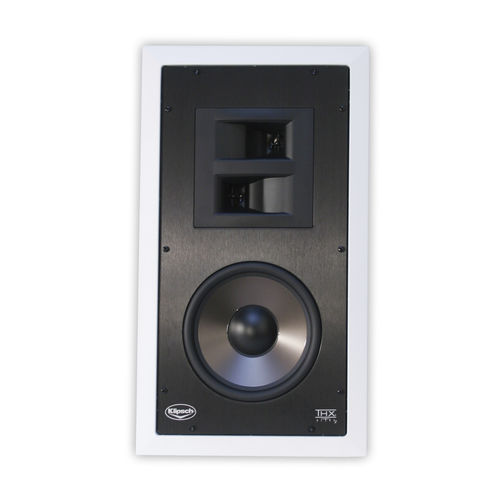

Developed to bring a whole new dimension of reality to home theater, the Klipsch KS-7800-THX offers the ultimate surround sound performance in a flush-mount design.
THX® Ultra2 certification
8-inch aluminum woofer
Two vertically-stacked Tractrix Horn-loaded tweeters
Utilizes Klipsch's Wide Dispersion Surround Technology™
FREQUENCY RESPONSE: 80Hz-20kHz+/-3dB
SENSITIVITY: 91dB @ 2.83 volts / 1 meter
POWER HANDLING: 100 w Continuous (400 w Peak)
NOMINAL IMPEDANCE: 8 ohms
TWEETER: Two 1 (2.5cm) Titanium dome compression drivers with neodymium motor structures
HIGH FREQUENCY HORN: Patent-pending WDST Tractrix Horn Array
WOOFER: 8 (20.3cm) Cerametallic cone, cast aluminum frame driver
CROSSOVER FREQUENCY: 2130Hz
ENCLOSURE MATERIAL: MDF Motorboard; ABS Shell
ENCLOSURE TYPE: Sealed
HEIGHT: 20.8" (52.7 cm)
WIDTH: 11.8" (29.8 cm)
DEPTH: 4.5" (11.4 cm)
CUTOUT DIMENSIONS: Height: 19" (48.3 cm)
Width: 10" (25.4 cm)
MOUNTING DEPTH: 3.7" (9.4 cm)
WEIGHT: 17 lbs (7.7 kg)
FINISHES: Paintable white frame (Brushed Aluminum Fascia)
INSTALLATION KIT: IK-802-W (sold separately)
BUILT FROM: 2006
