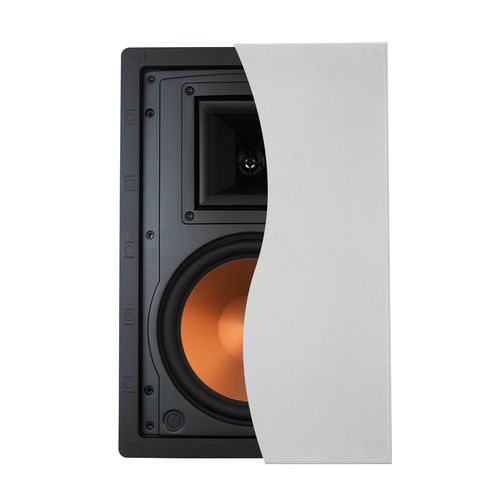

Creating a benchmark in architectural audio excellence, the installer-friendly Klipsch R-5800-W II in-wall loudspeaker delivers a level of realism and subtlety that surpasses and even intimidates competing designs.
Horn-loaded technology increases acoustic output while significantly reducing distortion
Pivoting Tractrix® Horn tweeter for clear sound in any location
Treble and midbass attenuation switches and IR receiver knock out
Elegant new, low-profile SlimTrim™ magnetic grille
FREQUENCY RESPONSE: 40Hz-23KHz ± 3dB
SENSITIVITY: 94dB @ 2.83V / 1m
POWER HANDLING: 50W RMS / 200W Peak
NOMINAL IMPEDANCE: 8 ohms compatible
RECOMMENDED AMPLIFIER POWER: 100 W
LOW FREQUENCY DRIVER: 8" (20.32cm) Cerametallic cone woofer
CROSSOVER FREQUENCY: 2600Hz
ENCLOSURE MATERIAL/TYPE: ABS/Infinite baffle, front flush with wall
DIMENSIONS: 16.1" H (40.89cm) x 10.6" W (26.92cm)
CUTOUT DIMENSIONS: 14.75" H (37.47cm) x 9.25" W (23.50cm)
MOUNTING DEPTH: 3.75" (9.5cm)
WEIGHT: 7.9 lbs. (3.6kg)
FINISH: White paintable frame and grill
INSTALLATION KIT: IK-800-W (sold separately)
WIRE GAUAGE ACCOMMODATED: 12 ga
BUILT FROM: 2012
