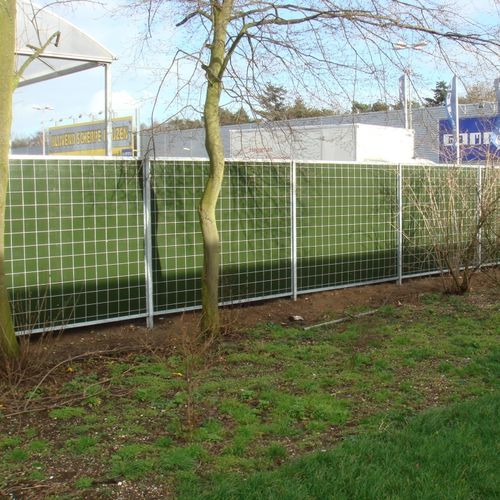

Noise barrier fence KOKOWALL® LITE

with panelsgardengalvanized steel

Technical properties Maximum construction height of 3 metres (higher is possible with a diff. foundation method) Sound absorption EN1793-1: Dla = 6dB (a) (on coconut side) Sound insulation EN1793-2: Rw=30dB (a) Panel weight: 16-20 kg/m2 Maximum panel width: 250cm (with H=200cm) Maximum panel height: 250cm (with W=200cm) Panel thickness: 5cm Foundation IPE 80-120 poles Material: one side coconut tubes and the other side a sound-insulating steel sheet Steel frame version: galvanized or powder coated (surcharge) Advantages Durable, economical & environmentally-friendly Minimum required construction space: approx. 15-20cm High sound insulation and absorption (on coconut side) Delivered fully custom-made (width and/or height) Can be built by hand (up to 3m high) Ideal for allowing plants to grow on surface Certification: CE Guarantee: 10 years Matching Kokowall Lite noise barrier door available
