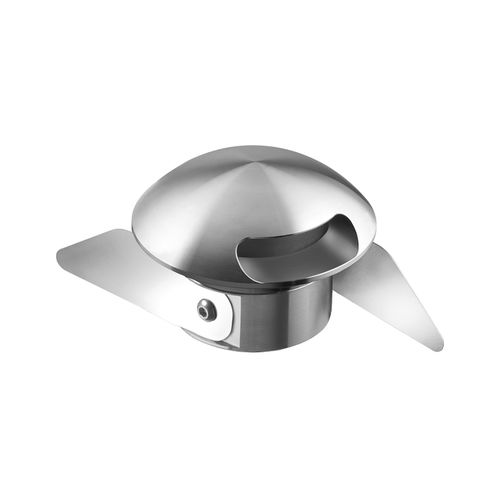

Built-in light fixture BEAM
LEDroundsquare

built-in light fixture
built-in light fixture
built-in light fixture
built-in light fixture
built-in light fixture
built-in light fixture
built-in light fixture
built-in light fixture
built-in light fixture
Add to favorites
Compare this product


Characteristics

Type
built-in
Light source
LED
Shape
round, square
Protection class
IP67
Interior/exterior use
outdoor
Material
stainless steel, anodized aluminum
Other characteristics
RGB

Description

Beam 1.0: recessed uplight for outdoor applications; walkover; recessed (ceiling, wall, floor); Power: max 3W; Power supply: max 700mA; RGB: max 350mA; Lumen output at source: 184 lm (3000K, 700mA), RGB: 217 lm R: 80 lm, G: 104 lm, B: 33 lm (350mA); Delivered lumen output: 114 lm (3000K, 700mA, 26°), RGB: 154 lm R: 57 lm, G: 74 lm, B: 23 lm (350mA, 19°); 1 power LED; RGB: 3 full-colour LEDs; LED colour: 2700K, 3000K, 4000K, 5000K, RGB, blue; Optics: 8°, 19°, 26°, 30°, 37°, 44°, diffuse; Body material: body in anodized aluminium, trim in aluminium, body in anodized aluminium, trim in AISI 316L stainless steel; Finishes: grey, stainless steel; RAL finish on request; Screen material: screen in sandblasted extra-clear glass, screen in transparent extra-clear glass; Thickness of installation surface: min 5 mm, max 30 mm; Ingress protection: IP67; Impact resistance: IK08; version with 24Vdc power supply available on request; Protection systems: IPS; Appliance class: III; Weight: stainless steel trim: 220 g, aluminium trim: 200 g; Dimensions: Ø60x53 mm. Beam 2: recessed for outdoor applications, single or double beam; walkover; recessed (wall, floor); Power: max 2W; Power supply: max 350mA; max 500mA; 24Vdc; Lumen output at source: 145 lm (3000K, 500mA); Delivered lumen output: 70 lm (3000K, 500mA; 1 power LED, 2 power LEDs; LED colour: 2700K, 3000K, 4000K, 5000K, blue; Optics: radial; Body material: body and trim in stainless steel, body in anodized aluminium, trim in aluminium; Finishes: stainless steel, grey, anthracite; RAL finish on request; screen in sandblasted plexiglass; Ingress protection: IP67; Impact resistance: IK09; Protection systems: IPS
