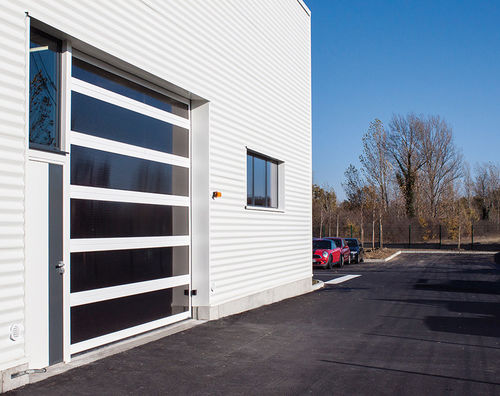

Glazed panels in anti-shock PMMA (UV resistant) allow for excellent transmission of light and are very resistant to shocks.
Dimensions
Bay width: From 1,500 to 6,000 mm
Bay Height: from 1,560 to 5,500 mm
according to configuration
All other dimensions on request
Panel insulation
Up to U = 2.3 W/m²K
Panel height
500 mm or 610 mm
Glazed panel
White lacquered aluminium frame
Three types of infill
Combinations
Possibility of combining foamed and glazed panels
Combinations
Class 4 up to 5,000 mm wide
Class 5 upon request
Locking
Lateral locking, lockable as an option
Operation
Manual (according to dimensions)
Chain hoist
Motorised
