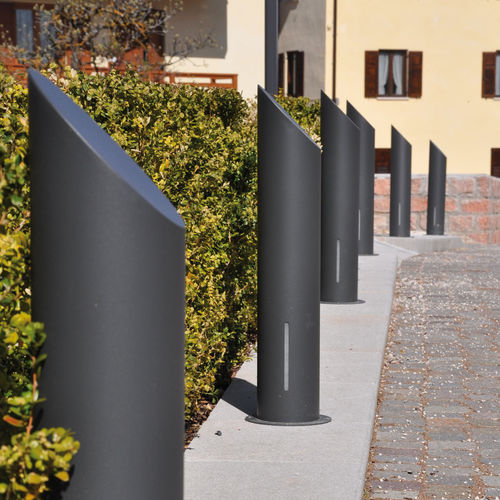

The bollard U LIGHT 1 with LED is made in steel, more specifically in tubular steel 152 mm diam. and 3 mm thick, laser-cut on the upper part with an inclination of 45°, where a plate, welded through continuous welding and later polished so that it’s seamless, is fixed. On the base of the bollard a flange with 4 holes, 11 mm diam., is welded for the fixing to the ground through specific bolts (not provided). The version for the fixing through cementation is provided with an under flange extension of 250 mm and the flange comes with no holes. In the tubular steel there’s a loop of dimensions 10xH 200 mm, which a plate in opal polycarbonate is applied to. Inside the bollard, a structure in galvanized steel with the led lights is placed.
Steel EN10111DD11 is used for the realization of this product and all the elements in this material, after all the different stages (cutting, bending, welding), are treated with electrogalvanizing according to the UNI regulations and are later polyester powder-coated with RAL colours at choice.
The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.
