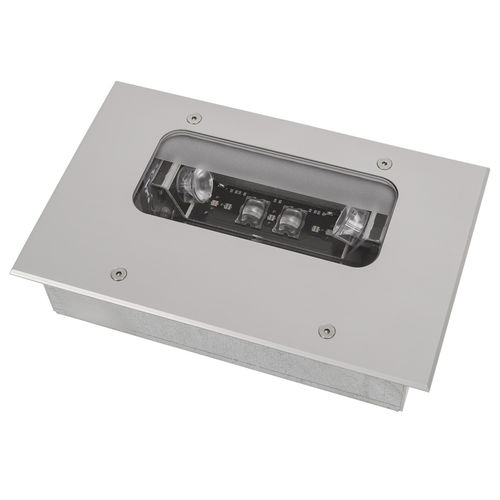

Recessed spotlight for path lighting to be placed at less than one metre above ground.
Special H30 and H60 lenses Cycle paths and pedestrian paths lighting, at large intervals (more than 6m). Tiltable beam (+/-30°) without opening the spotlight.
Wall version of the 6430 bollard.
APPLICATIONS:
Cycle paths and pedestrian paths lighting
Stair lighting
Monuments lighting
Anodised aluminium body
Colourless anodised machined aluminium frame
Vandalproof organic glass window
Thermolacquered paint on frame on request
APPLICATION
Outdoor lighting
Standard flux : 892 lm
This value is gained from the optimum
output of the LED number, inclusive of
optic, for a cool white LED (6000K)
MOUNTING TYPE
Wall recessed
CARACTERISTICS
Weight : 1250 g
Eco Design
Options of luminous effects
Adjustable on 1 axis
Rotating beam
Beam with various openings
Transparent flat window
Power supply - Control
Cable length: 1 m
Material
Anodised glazed aluminium
316L Stainless steel
Vandalism-proof, scratchproof,
UV-proof,
polycarbonate window, M2
Mechanical strength - Waterproofness
IP69
K
pressure water spray
(previous registration)
IK10
20J
Resists impacts up to 20
joules (IK10)
IP67 Tight for temporary
immersion
Adjustable orientation
without dismantling
