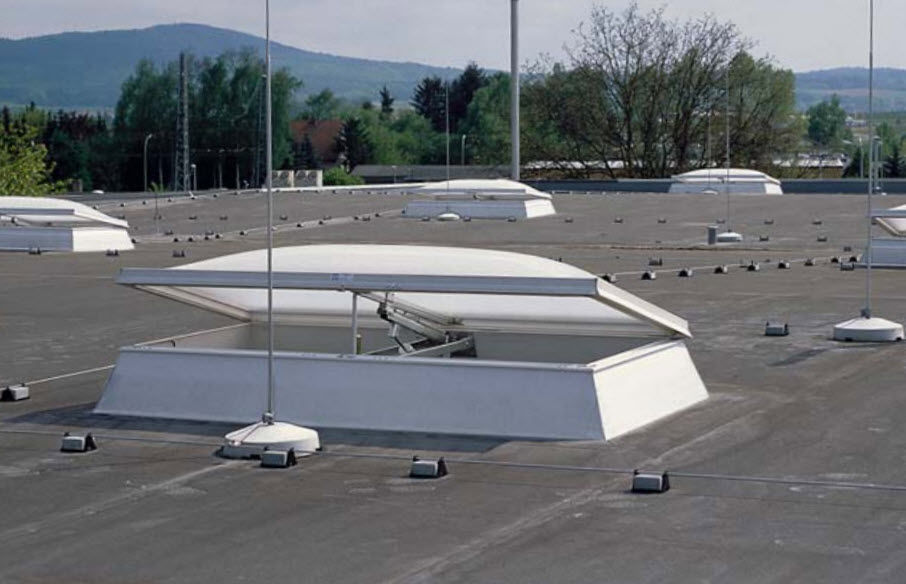

Skylight
ESSMANN® VENTILATION UNITS/INSTALLATION UNITS
LJ Pratley & Partners Ltd
ESSMANN Spindle Opener
A removable manual crank is used to
operate the spindle opener.
The skylight dome can be opened to
any length up to approx. 30 cm (other lifting lengths on request). Manual
cranks are available in lengths of 1.50
m and 2.50 m
ESSMANN Lifting Opener
A removable lifting rod is used to operate the lifting opener. The skylight
dome can be opened to any length up
to 30 cm (other lifting lengths on request). Lifting rods are available in
lengths of 1.50 m and 2.50 m.
ESSMANN Servomotor Opener
The 230 V, 0.1A servomotor is fitted
with splash protection (IP 54) and is
multi-switch operated.
The skylight dome can be opened to
any length up to 30 cm (other lifting
lengths on request).
ESSMANN Egress Hatches
(see data sheet 2.13) Various types
are available, depending on the nominal size, for manually-operated or
gas-spring-driven opening from the
inside. One special access hatch can
only be opened from the outside.
