The AMT-AC series grilles are designed to be used in air-conditioning,
ventilation and heating.

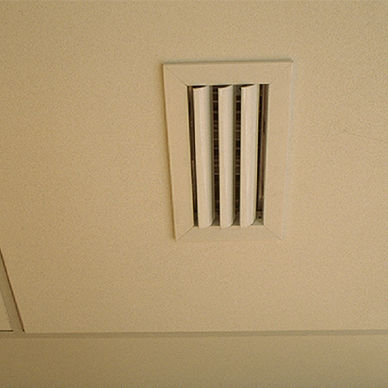

The individually adjustable curved blades are for installation in ceilings,
to be used in premises from 2,6 metres high, where a good distribution
of cold air is achieved.
CLASSIFICATION
AMT-AC One-Way grille with blades parallels to the
largest side (cota L).
AMT-ACO Two-Way grille with blades parallels to
the largest side (cota L).
BMT-AC One-Way grille with blades parallels to the
shortest side (cota H).
BMT-ACO Two-Way grille with blades parallels to
the shortest side (cota H).
MATERIAL
Extruded aluminium grilles. All the grilles are
provided with a seal on the back of the frame in
order that the perimeter in contact with ceilings is
airtight.
ADDITIONAL ACCESSORIES
SP Opposed blades volume damper from electrozinc steel, in black colour. The damper is operated
by an easily accessible key inside the grille.The
damper is held in place by springs.
FIXING SYSTEMS
(O) Hidden screw. It requires mounting frame CM.
(T) Visible screws.
FINISHES
AA Matt silver anodised.
M9016 Painted in white similar to RAL 9016.
SPECIFICATION TEXT
Supply and mounting of grille in One-Way for air
supply with individually adjustable curved blades
parallels to the largest side serie AMT-AC+SP+CM
(O) M9016 dim. LxH, constructed from aluminium
paint in white M9016 with opposed blades volume
damper from electro-zinc steel in black colour SP,
invisible fixing by hidden screws (O) and mounting
frame CM. Manufacturer MADEL.
