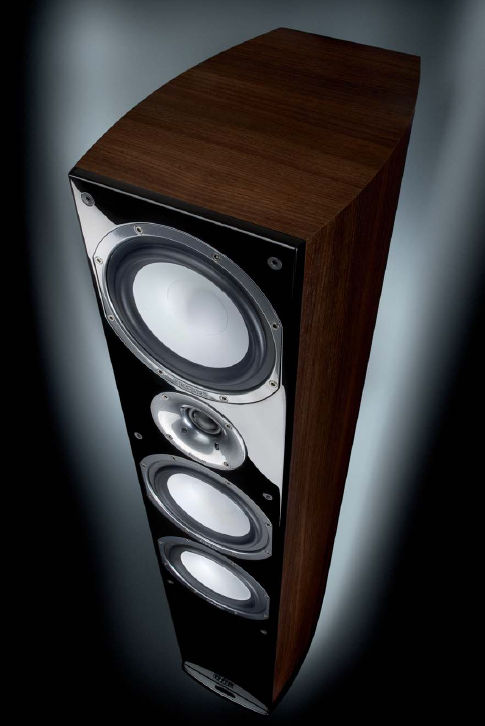

Tower speaker
QUANTUM 657
MAGNAT
Configuration 3 way bass reflex
Impedance 4-8 Ohms
Equipment 2 x 6.5" woofer
6.5" midrange
1.2" dome-tweeter
Power handling RMS / max. 200 / 350 Watts
Dimensions (W x L x D) 202 x 1080 x 316 mm
Cabinet surface Black, mocca, cherry, calvados
Highlights
Solid and substantially braced MD cabinet with rounded side panels and 25 mm low-resonance baffle
Solid MDF cabinet with rounded side panels and 25 mm lowresonance baffle
Baffle with high-quality lacquering
HRH tweeter with 30 mm cloth dome, special damping and ferrofluid-cooling, big surround and Harmonic Radiation Horn
FE-Dynamics woofer-midrange, ceramic-aluminium cones, 25 mm voice coil and flowoptimized basket made from carbon-reinforced ABS
Airflex ports with extremely wide openings for optimized bass connection
Klippel®-optimized
Removable protection grill with optimum sound transmissibility
Big bi-wiring connecting terminal with solid screw connectors
High-grade internal wiring
Heightadjustable metal spikes included
Impedance 4-8 Ohms
Equipment 2 x 6.5" woofer
6.5" midrange
1.2" dome-tweeter
Power handling RMS / max. 200 / 350 Watts
Dimensions (W x L x D) 202 x 1080 x 316 mm
Cabinet surface Black, mocca, cherry, calvados
Highlights
Solid and substantially braced MD cabinet with rounded side panels and 25 mm low-resonance baffle
Solid MDF cabinet with rounded side panels and 25 mm lowresonance baffle
Baffle with high-quality lacquering
HRH tweeter with 30 mm cloth dome, special damping and ferrofluid-cooling, big surround and Harmonic Radiation Horn
FE-Dynamics woofer-midrange, ceramic-aluminium cones, 25 mm voice coil and flowoptimized basket made from carbon-reinforced ABS
Airflex ports with extremely wide openings for optimized bass connection
Klippel®-optimized
Removable protection grill with optimum sound transmissibility
Big bi-wiring connecting terminal with solid screw connectors
High-grade internal wiring
Heightadjustable metal spikes included
