Article number: 0151.0320
Manufacturer: MAICO
TS 18 DN 100 - short description

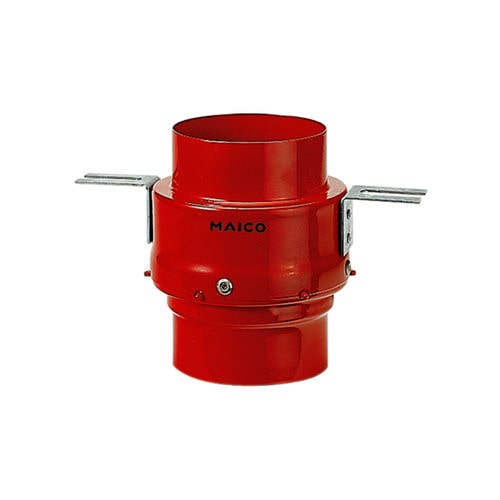

Fire protection ceiling barrier for ER exhaust air systems, DN 100
TS 18 DN 100 - Product description
Fire protection ceiling barrier for ER exhaust air systems.
With continuous open cross-section and smooth inner surfaces.
General official approval, approval number Z-41.3-556.
Certificate of approval at www.maico-fans.com.
Fire resistance class K90-18017.
Maintenance-free.
Technical data
Air direction Ventilation and air extraction
Installation site Ceiling
Type of installation Recessed-mounted
Material Sheet steel
Weight 0,9 kg
Fire protection yes
Suitable for nominal size 100 mm
Width 226 mm
Height 152 mm
Depth 126 mm
Approval number Z-41.3-556
Packing unit 1 piece
Range B
GTIN (EAN) 4012799513209
