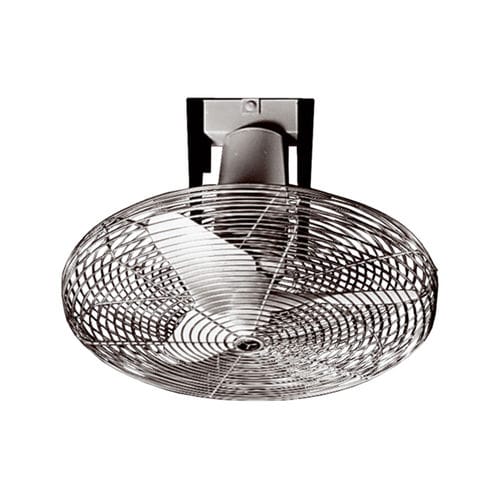

Axial fan ECO 30 E / ECO 40 D
wall-mountedceilingcommercial

axial fan
axial fan
axial fan
Add to favorites
Compare this product


Characteristics

Type
axial
Installation
wall-mounted, ceiling
Sector
commercial, residential, industrial
Material
metal, plastic
Air flow

2,800 m³/h, 4,500 m³/h
(98,881.1 ft³/h, 158,916 ft³/h)

Description

Article number: 0088.0010 Manufacturer: MAICO Application examples: Commercial premises, Production facility, Restaurant, Workplace, Showroom ECO 30 E - short description Oscillating axial industrial fans for wall installation, impeller diameter 300 mm ECO 30 E - Product description Features ECO 30 E, ECO 40 D Oscillating fan. Suitable for wall installation. Minimum mounting height = 2.3 m (distance between lower impeller edge and floor). With yellow chromated protective cage, protection against accidental contact in accordance with DIN EN ISO 13857. 3-blade impeller made of plastic. Adjustable pivoting angle: 55°, 70°, 90° or 115°. Fan and swivel gear drives can be switched separately. Motor Asynchronous motor. Thermal overload protection as standard feature. Mounting instructions Individual components must be fitted on site. Mounting hooks must be provided by the customer. Electrical connection To terminal blocks in the canopy's connection area. Special versions The following special versions are available at extra cost on request: Special voltages and frequencies. Information on operation at temperatures occasionally below -20 °C available upon request. If operating with frequency converters, the factory must be consulted. Feasibility must be checked in each case.
