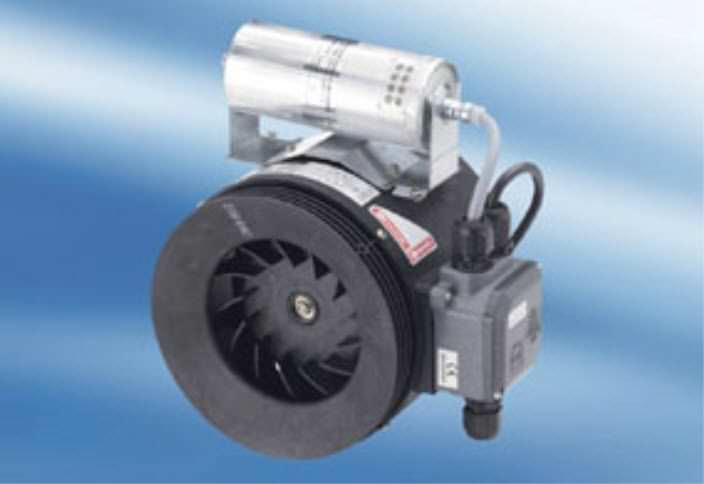

Centrifugal extractor fan
ERM-E EX E
Semi-centrifugal duct fan, single-phase AC, explosion proof
Environment with explosion hazard (zone 1 and 2), Dye shop, Battery room, Commercial premises, Production facility
- MAICO Ex fans fulfil the safety requirements of European Directive 94/9/EC for units and protective systems in explosion-endangered areas.
- Device group II, Category 2 G
- Type of protection "e": Increased safety
- For zones 1 and 2.
- Supply of smaller air volumes only at medium resistances.
- Housing and impeller are made from high quality synthetic material, antistatic
- Semi-centrifugal impeller, favourable flow technology.
- Inflow direction equals outflow direction. Thus resulting in simple installation.
- Can be fitted in any position.
