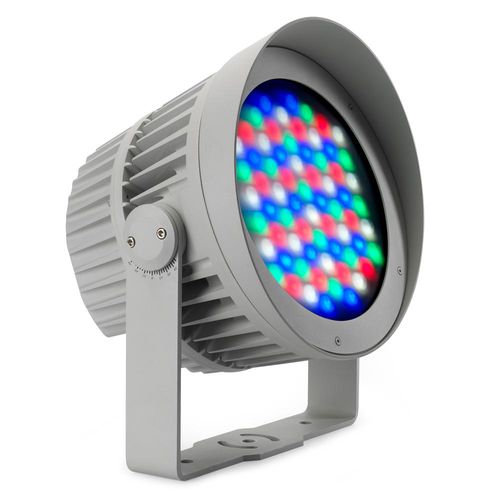

IP66 floodlight EXTERIOR 200™
LED RGBWcommercialoutdoor

IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
IP66 floodlight
Add to favorites
Compare this product


Characteristics

Protection class
IP66
Light source
LED RGBW
Application
commercial
Interior/exterior use
outdoor
Type
surface-mounted
Shape
round
Beam type
wash
Dimmable
dimmable
Other characteristics
effect
Height

382 mm
(15 in)

Length

270 mm
(11 in)

Width

334 mm
(13 in)

Power

160 W

Luminous flux

Min.: 0 lm

Max.: 6,500 lm

Color temperature

6,500 K

Color rendering index (CRI)

70 unit

Description

Exterior™ Wash 200 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate mid-sized structures and building facades. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use. The Exterior Wash 200 is designed for narrow beam applications and is based on separate LEDs for red, green, blue and white Narrow beam configuration with 6 beam angle options Functional and discreet optional snoot which integrates with the design of the fixtures Control via DMX, RDM and OLED display Powerful single color R,G,B,W LEDs Six different beam angle options Internal power and control (DMX, RDM and OLED display) 0–100% intensity control Color mixing: RGBW Intensity: 0 - 100% Control systems: DMX, RDM Setting, addressing, standalone programming: Control panel with OLED display Stand-alone control: Up to 20 scenes with global fade/hold times DMX channels: 3-5 depending on DMX mode Receiver: RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Serial upload via DMX link Light source: 16 x R, 18 x G, 16 x B, 18 x W single-color LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Beam Angle Options: No diffuser: 7.5° Narrow diffuser: 11.5° Medium diffuser: 25° Wide diffuser: 36° Very wide diffuser: 60° Asymmetric diffuser: 59° x 14.5° *Figure obtained under manufacturer's test conditions Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration
