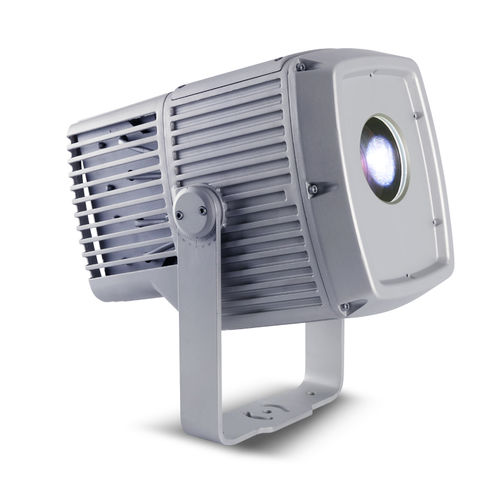

The Exterior™ Projection 500 is a powerful fixture for integrating textures, patterns and graphics in outdoor lighting designs. The fixture can be used for bright and dynamic logo projection as well as precision framing.
Using advanced LED technology, it offers outstanding energy efficiency, compact size and unlimited creative possibilities.
Flat-field, high-contrast image projection
Fully weatherized for trouble-free use with minimal maintenance in outdoor installations
Packed with features, allowing huge creativity in setting up exciting lighting effects
Up to 6100 lumens output with 4 beam angles variants from narrow to wide
Powerful close-range and long-range projection
Flat-field, high-contrast image projection based on high-power LED engine
4 layers of versatile dynamic effects (colors, gobo projection, gobo animation, prisms/frost)
Crisp image projection
Rugged IP66-rated housing
Minimal maintenance – low total cost of ownership
Color wheel: 8 interchangeable colors + open
Gobo wheel: 6 rotating gobos plus open, indexing, variable rotation
Gobo animation: Variable speed linear animation effect
Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
Frost (wash effect): Motorized variable
Dimming: Electronic, constantly variable 0-100%, 16-bit control
Shutter: Strobe and pulse effects, instant open and blackout
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
Control options: DMX, RDM, standalone
Stand-alone control: Up to 20 scenes with global fade/hold times
Configuration, addressing and status: Onboard control panel with OLED display
DMX channels: 13
8-bit control: color/gobo selection, prism, frost, animation
