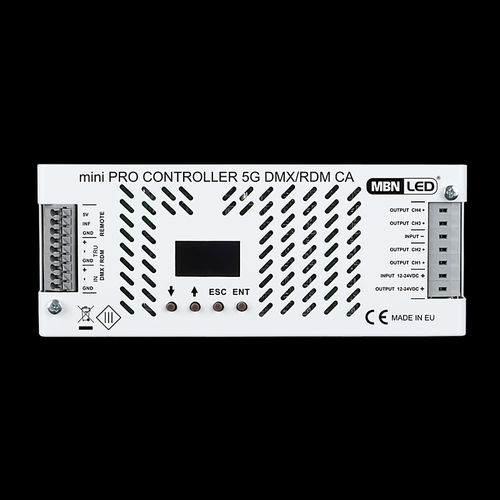

The PROLED mini PRO CONTROLLERS 5G are used together with a switching power supply are used as a 4-channel power supply for all PROLED products. With the PROLED mini PRO CONTROLLER 5G fantastic colour mixings and colour changes can be achieved for the PROLED products (by automatic programs or different control options). 5 model with different control options are available (DMX/RDM, DALI, 1-10 V, RF remote controller and W-DMX, CASAMBI). Any fixed colour can as well be selected and dimmed. With the RGB spectra 16,7 million colour combinations are possible. The automatic programs and the configuration of the DMX/RDM version can be changed by RDM with the PC-DMX/RDM INTERFACE and the associated software (included with the PC-DMX/RDM INTERFACE). By using the IR receiver or RF receiver / RF receiver 2G all programs can be controlled with the IR or RF remote controller. Two versions are available: CA (common anode – common plus) and CC (common cathode – common minus). The PROLED mini PRO CONTROLLER 5G can also be used as 4-channel dimmer for the monochrome PROLED products.
4 channels
Input 16 A (12 V: 192 Watt, 24 V: 384 Watt)
Output 4x 4 A = 16 A. 12 V: 192 Watt (4x 48 Watt), 24 V: 384 Watt (4x 96 Watt)
Power range 12–24 V
5 versions: DMX/RDM, DALI, 1-10 V, RF remote controller and W-DMX, CASAMBI
The DMX/RDM version is remote controllable per RDM by using the PC-DMX/RDM INTERFACE and the software
The DMX/RDM, DALI and 1-10 V version is IR or RF remote controllable by using the IR INTERFACE or RF INTERFACE / RF RECEIVER 2G
10 integrated stand alone programs (by using the DMX/RDM version changeable with the PC-DMX/RDM INTERFACE)
