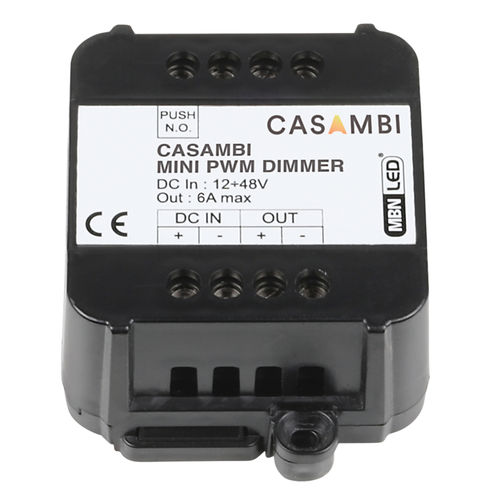

1-channel LED dimmer. Controllable by CASAMBI App (iOS and Android), other CASAMBI controllers or by means of a pushbutton (PUSH-DIM function). The output voltage corresponds to the supply voltage of 12-48 V.
Due to its compact size the CASAMBI MINI PWM DIMMER can be installed in a standard German in-wall mounting box (68 mm).
Power Range -
12–24 V
Output -
1x 6 A
Control signal -
CASAMBI or PUSH-DIM
Output channels -
1
PWM frequency -
600 Hz (default)
Output voltage -
12–24 VDC
Operating temperature range -
-10° C till +40° C
Dimensions (l x w x h) -
58 x 44 x 25 mm
Weight -
0,05 kg
