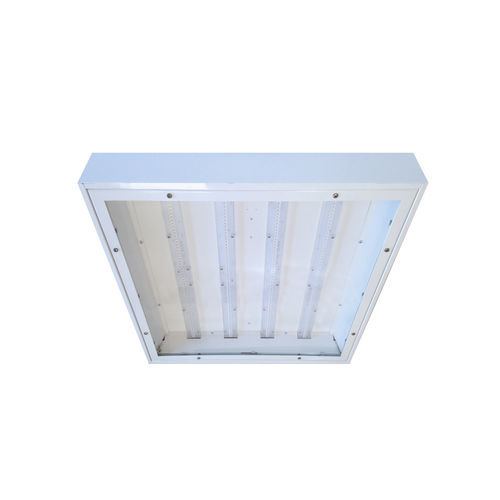

Hanging light fixture IPER surface-mountedLEDsquare
Add to favorites
Compare this product
Characteristics
- Type
- hanging, surface-mounted
- Light source
- LED
- Shape
- square
- Protection class
- IP65
- Application
- commercial, industrial
- Material
- glass, sheet steel, polyester
- Color
- white
- Style
- contemporary
- Dimmable
- dimmable
- Number of lights
- single
- Other characteristics
- DALI
- Height
140 mm
(6 in)- Length
650 mm
(26 in)- Width
650 mm
(26 in)- Power
101 W, 127 W
- Luminous flux
Max.: 16,425 lm
Min.: 13,140 lm
- Color temperature
3,000 K, 4,000 K
- Color rendering index (CRI)
80 unit
Description
Mountings
Suspended fitting with eyebolts included
Ceiling by acc: 4412-IPRLED
Body
in iron’s sheet, painted with SOLVENT FREE, epoxy polyester powders, thermosetting
at 180°C, after phosphate treatment.
Holding frame sheet steel, attached to the body by means of four sliding plates with safety screws, hinged for maintenance.
Light emission
Direct
Symmetric
Optical device
PMMA transparent lens. (efficiency 95%)
standard 60
retail symmetrical
retail asymmetrical
Tempered transparent glass shield
Light source
CRI > 80
Colore tolerance: 3 Step MacAdam
Lifetime: 60000 hrs L80B10
Wiring
Class Ist
Feeding 220~240V Ac 50-60 Hz
Performance data
Protection rate: IP65
Normatives
EN 60598-1
EN 62031
EN 60598-2-1
Photobiological safety
EN 62471
IEC/TR 62778
Rischio esente – GR 1
Directives
2014/35/UE
2014/30/UE
UPON REQUEST VERSIONS
DALI dimmable electronic ballast
Emergency unit: 1/3 hours
LED CRI > 90
Catalogs
IPER 8615 LENS
1 Pages
Lighting Collection
348 Pages
