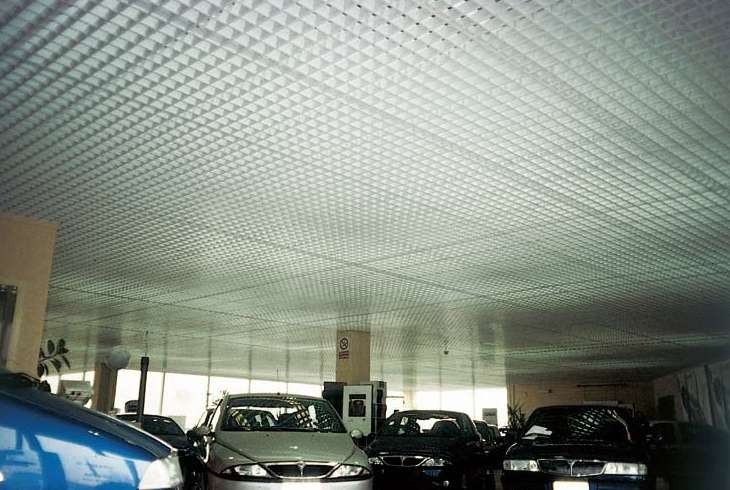

Aluminium grid panel for suspended ceiling
COKI-U "APPOGGIO"
METALSCREEN
Open cell ceiling lay-in system METALSCREEN COKI-U "APPOGGIO" T24 prepainted aluminium corrosionproofincombustible class "0" - Euroclass fire reaction A1 (colour and mesh cells dimension choosed by the consultant). The open cell ceiling panels must have "U" shaped section base width mm.10 or mm.15 and height mm.40 (the base width dimension choosed by the consultant). The COKI-U "APPOGGIO" open cell panels mm.600x600 will be installed lay-in on exposed T bar grid mm.600x600xH38 system "TWIN LOCK" mm.24xH38 of the same colour as the open cell ceiling. Each panel must be easily removable for inspection. The modular panels mm.600x600 are easily individually laid and taken out of the standard T grid, by lifting them upwards for simple access to the plenum.
