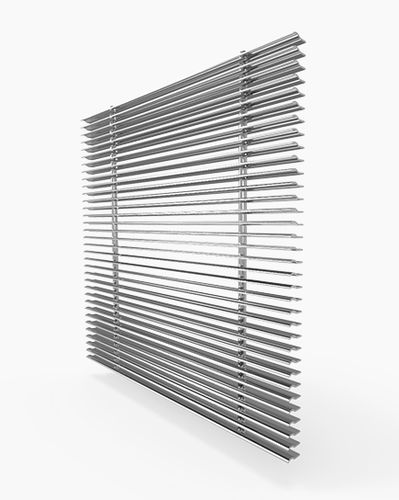

Aluminum ventilation grill 513BI

rectangularlinearcover

Linear grilles, waves-slat system 513bi - Cover grille air permeable - Easy access - Easily removable - Walkable - Free ventilation cross section: 73% - Suitable: As a floor / covering or wall covering Light Series: waves-slat Fin spacing: 13 mm Construction: slat 010bi in frame 503 Fly screen: Fiberglass MW 1.4 mm / 1.4 mm Nirosta MW Bird protection: Galvanized MW 10 mm / 8 mm Nirosta MW Surface: E6 / EV1 anodised, E6 / C31-35 shades, RAL to choose / raw Special colors on request Mounting: Glazed-in All profiles are made of Al MG Si 0,5. MLL-linear grating are shapely air diffusers made of aluminum. They are used as a practical cover on the walls or used as a discreet, walk-variant on the floor. They conceal discreet air channels without having during maintenance operations to block. The application area of the MLL-linear grating is everywhere where you want a quick access to air channels. Application: - Ventilation channels - For mounting in boxes, window sills and radiator conversions. - For covering the ground manholes and sewer overflows Note: Additional product information and technical drawings can be found on the following link on our website.
