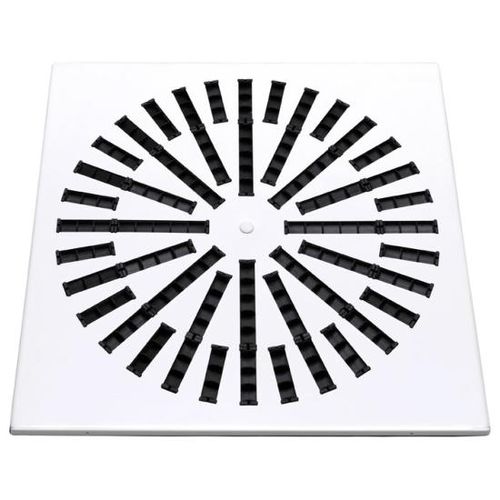

Ceiling air diffuser KQ1 SERIES

squareslot

Overview The KQ1 and KQ8 Series units are squared diffusers with slots on panel. The loopholes are star shape drawn up and they have orientable deflectors. They are used both in supply and extraction and they are ceiling installed. They find their application where is required a cared for design and where is appreciated an easy installation and regulation of the throw. Technical data Available in sizes from 300x300 to 825x825 mm Smaller size achievable on panel 600x600 mm (standard T KQ ...) Steel panel painted white RAL 9010 Adjustable deflectors in black ABS RAL 9005 (KQ1) or fixed in ABS black RAL 9005 (KQ8) Retractable steel baffles (APKQ1) Installation height between 2.6 and 4.1 m Adjustable steel deflectors RAL 9005 ( AP-KQ) Air flow rate from 50 to 1770 m3 / h Fixing by screws to the side plenum or central screw cap and white caps Plenum box in galvanized steel with or without capital gain, shutter, insulation and deck assembly Plenum in PS available size 600x600 Available version in stainless steel AISI 304 or AISI 316 with a glossy or satin finishing
