Application

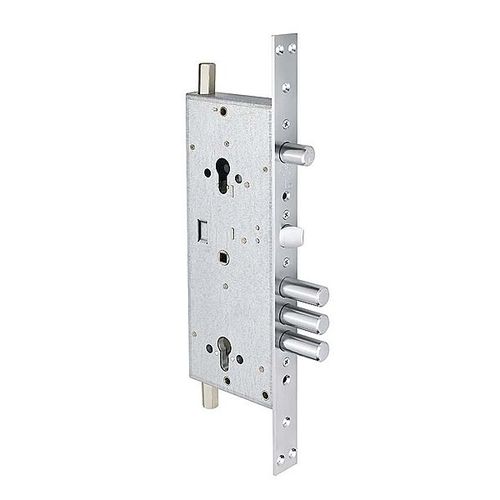

A heavy duty multipoint lock for steel doors.
Features
4 smart key-turns
41.5 mm bolt throw
15 locking bolts
Geometrical locking
Double cylinder locking
Cogwheel central locking mechanism
Dead-bolt latch when locked
Operated by Euro profile cam cylinders
Right- or left-hand installation
Options
Lockset includes: Central lock; Side mechanisms; Rods; Security escutcheons; Hardware; Counter strikes; Installation instructions.
Specifications
Handle operation
Latch Ø20 mm
Backseat: 65 mm
Bolt throw: 41.5 mm
Minimum door height - 1950 mm
Maximum door height - 2120 mm
Finishes
Bright brass; Nickel satin; Nickel chrome
