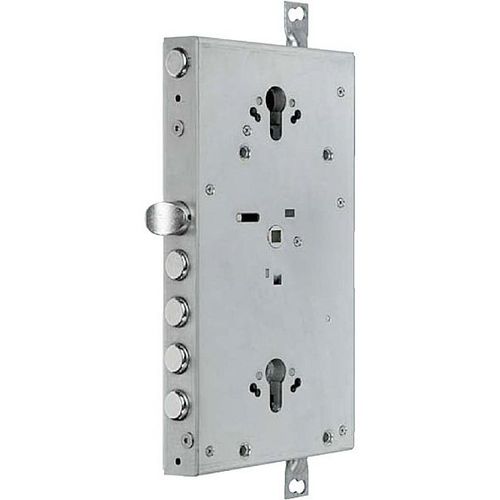

Security cylinder lock DOUBLE

Application A heavy duty multipoint lock for armored doors. Operation Operated by Euro profile cylinder When lock is closed, latch can not be withdrawn using the handle Features 3-point lock Gear-based mechanism Latch functionality Right- or left-hand installation Options 4 bolts (Ø18 mm) for standard 28 mm bolt spacing (A) 3 bolts for 37 mm bolt spacing (A) Specifications Handle operation Latch: Ø20 mm Backset: 65 mm Bolt throw: 30 mm Lever stroke: 20 mm Bolt protrusion: 3,13 mm (B) Variety of key lenghts
