Electric home elevator
VISION 450
Nationwide Lifts

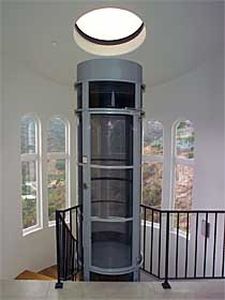

Vision 450 home elevator is a pneumatic lift operating with a vacuum concept. Unlike most residential elevators, Vision 450 require no pit, machine room, or hoist way and has a cylindrical elevator cabs with panoramic visibility. Instead of a guide rail or cable, the elevator has a driving machine consisting of turbines that remove the air from the top of the car and, as a result, the car moves in an upward direction. No ropes, pulleys, chains, or counterweights are used, and a safety valve is located at the top of the car to act as a top switch so the cab knows where to stop on certain floors. Instead of using a pit, the elevator cab sits at floor level at the bottom and, for each floor stop above, is held in place by mechanical locks.
The Vision 450 has a 450 lb capacity and moves at 30 fpm. The elevator car has a 32 inch interior diameter, a 39 inch outside diameter, and a 77 inch interior height. The elevator can travel 30 feet with up to three stops.
Installation for the Vision 450 should take two days. Installation works best with an open floor plan, but before installation, the customer should have the site prepared with permanent power and floor cutouts. Also, a functional telephone jack needs to be near a power disconnect box, and the power supply must come from above or below the planned space for the home elevator.
