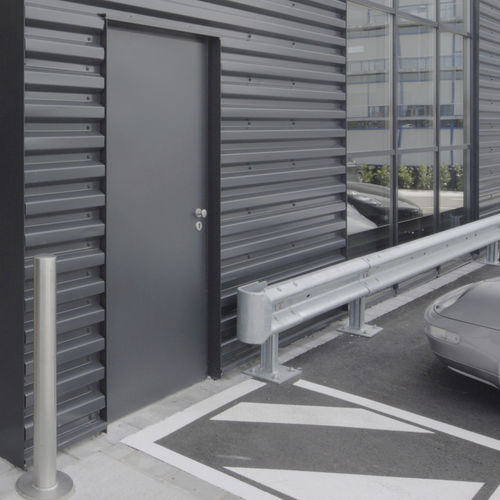

Entry door NOVOPORTA PREMIO MZ

sheet steelgalvanized steelswing

Novoferm’s NovoPorta Premio multipurpose doors with high quality thick rebate are available for indoor and outdoor use. YOUR ADVANTAGES AT A GLANCE! Single and double fire resistant steel door units for indoor and outdoor use Performance characteristics tested to EN 14351-1, with CE marks Door panel with 64 mm thick rebate on three sides, sheet thickness 1.0 mm (1.5 mm optionally available) High quality mineral wool insulation filling Door leaf and frame galvanized and primed (powder-coated) similar to RAL 9016 Hardware: 3-part hinge plates, standard equipped with ball bearings. Two hinges per leaf, standard primed white, similar to RAL 9016; optionally available in stainless steel, as adjustable 3-D hinges in steel or stainless steel, or as customized slimline 3-D stainless steel hinges. Spring hinge per leaf up to BRM 1250 x 2250 mm. Two securing pins per leaf. PC mortice lock with drawback latch, with black rounded handle set (turn lock mounted). On site profile cylinder (85 mm long, 35/50 mm). Door panels standard equipped with internal reinforcement for overhead door closer on the hinge side. Additional features on double door units: Flush centre rebate with centre rebate seal. Inactive leaf with upward and downward locking front end bolt. Frames: Standard corner frame with three-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter and block frame for butted wall connection, or block frame for installation in front of the wall.
