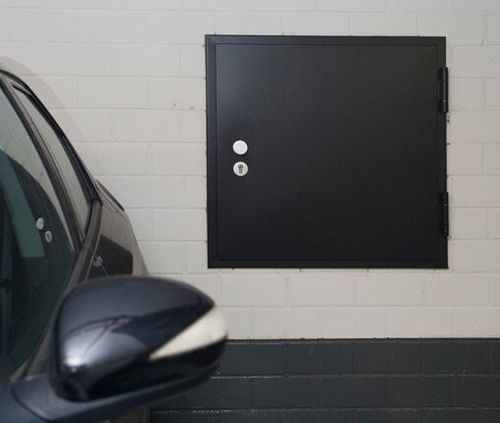

Wall access hatch NOVOPORTA PREMIO T30 / T90
squarerectangularstainless steel

wall access hatch
wall access hatch
wall access hatch
wall access hatch
Add to favorites
Compare this product


Characteristics

Applications
wall
Shape
square, rectangular
Material
stainless steel, galvanized steel
Pose
built-in
Other characteristics
fire-rated
Length

Max.: 1,750 mm
(69 in)

Min.: 700 mm
(28 in)

Width

Max.: 1,000 mm
(39 in)

Min.: 500 mm
(20 in)

Thickness

64 mm
(3 in)

Description

Novoferm’s NovoPorta Premio wall flaps with high quality thick rebate are available in fire resistant classes T30 (EI2 30) and T90 (EI2 90) for indoor use. YOUR ADVANTAGES AT A GLANCE! Single leaf fire resistant steel wall flaps for indoor use Fire retardant / fireproof – tested to EN 1634-1 and building code approved as per DIN 4102 Flap with 64 mm thick rebate on four sides, sheet thickness 1.0 mm (1.5 mm optionally available) Flap and frame galvanized and primed (powder coated), similar to RAL 9016 Hardware: Standard equipped with one 3-part hinge plate with ball bearing and one 3-part spring hinge (T90: spring hinge up to max. flap size of approx. 1 m² due to size and weight constraints; larger sizes are fitted with hinge plates and overhead door closers). Hinges standard primed white, similar to RAL 9016; optionally available in stainless steel, as adjustable 3-D hinges in steel or stainless steel, or as customized slimline 3-D stainless steel hinges (upper door closer always necessary for customized hinges). One securing pin up to BRM height 1750 mm. PC mortice lock with drawback latch, with black rounded handle set (turn lock mounted). On-site profile cylinder (85 mm long, 35/50 mm). Flaps standard equipped with internal reinforcement for overhead door closer on the hinge side. Frames: Standard corner frame with four-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter and block frame for butted wall connection (T30: also block frame for installation in front of the wall). Sills: Standard B1 with all-round frame. Optionally available with B3 sill.
