Description

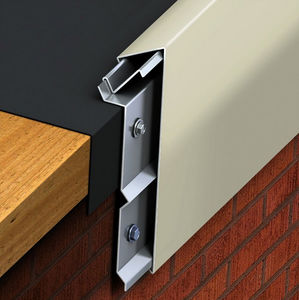

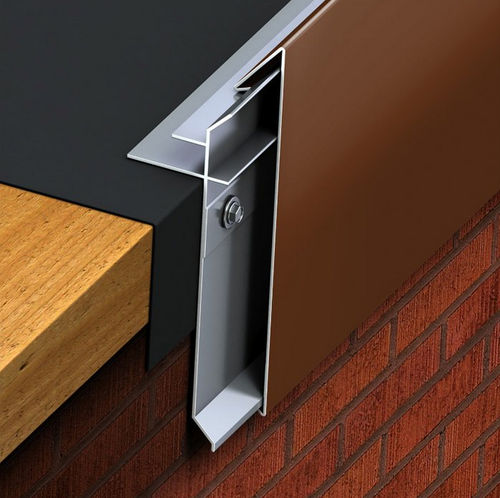

PAC-TITE Angular Fascia provides unmatched uplift protection for single-ply and built up/modified roof systems. Combining superior strength and aesthetics with ease of installation, PAC-TITE Angular Fascia offers the ideal solution in roof edge applications, meeting the most stringent performance requirements.

A non-penetrating design eliminates the need for stripping in and heat welding, maintaining the watertight integrity of the installation. PAC-TITE Angular Fascia features an extruded aluminum anchor bar to securely terminate the membrane. The bar is readily available to dry-in the roof structure for added installation flexibility.

Available in two versions
Two versions of PAC-TITE Angular Fascia are available and have been extensively tested to meet ANSI-SPRI ES-1 and FM Approvals:
Fully Adhered/Mechanically Attached Single-Ply (FA)
Built-Up/Modified (BUM)
Additionally, PAC-TITE Angular Fascia is backed by a Lifetime 215 mph wind warranty to ensure long-term, worry-free performance.

PAC-TITE Angular Fascia features pre-punched holes which not only provide quicker installation for labor savings, but are slotted to allow for thermal movement for guaranteed long-term performance. Competitively priced, PAC-TITE Angular Fascia’s installed cost can be as economical as local fabrication while ensuring specification details are met.

Offering a wide range of factory-fabricated accessories such as miters, scuppers and drainage components, Petersen Aluminum provides the complete system to ensure a clean, sure-fitting product while eliminating the need for field fabrication.
