TG 30-20 Pagani

Add to MyArchiExpo favorites

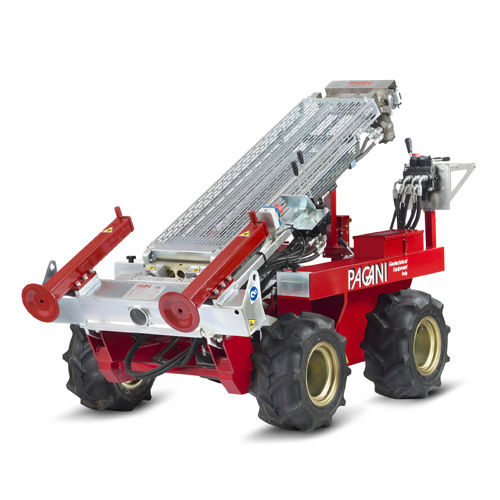

penetrometer penetrometer - TG 30-20


4×4 penetrometer for maximum versatility in dynamic testing.

The Pagani TG30-20 penetrometer is the response to the ever-increasing demand for manoeuvrable and versatile machines which are easy to use. The TG30-20 sets itself apart with the high proportion of energy transmitted to the rods by the hammer. It guarantees perfect verticality when driving in the rods. It makes removal of the entire rod possible.
The TG30-20 penetrometer is installed on 4×4 hydraulic drive wheels, offering maximum mobility, even on uneven ground. It can even be positioned on very steep slopes thanks to its three stabilisers, and its innovative hydraulic system means the mast can be tilted continuously, meaning it is always perfectly vertical. It is a highly flexible machine, which offers the ability to use it easily and effortlessly by one single operator.
Its reduced size means it can be transported on vehicles which require a standard (European B) driving license.
Available options

The TG30-20 penetrometer can use the following, as well as its standard equipment:
• a sampler for taking soil samples with limited disturbance, guaranteeing improved ability to interpret the penetrometric data;
• removable bits;
• lining tubes for DP tests.
