Swimming pool heat exchanger MAXI-FLO

swimming pool heat exchanger
swimming pool heat exchanger
Add to favorites
Compare this product


Characteristics

Other characteristics
for swimming pools

Description

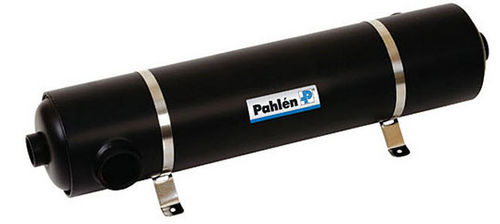

Heat exchanger Maxi-Flo is a tube heat exchanger with excellent heating properties. Heat exchanger Maxi-Flo is made of acid-proof stainless steel AISI 316L for optimum service life. The installation is simple using the stainless steel adjustable attachments that are included. • Acid-proof stainless steel AISI 316L - For optimum quality and life. • Precision-welded outer jacket - For optimum finish and long life. • 37 seamless pipes equipped with flow restrictors - For high heat transfer capacity. • Adjustable brackets of acid-resistant stainless steel - For simpler and more flexible installation. • Four sizes: 40, 60, 75 and 120 kW - For swimming pools of up to 450 m3. • Connects to boiler, heat pump, solar panel system or other heat source - Suits all installations. Maxi-flo is a tube heat exchanger with excellent heating properties. It is made of acid-proof stainless steel AISI 316L for optimum service life. Simple installation using the stainless steel adjustable attachments that are included. Capacity range 40-120kW. Maximum pressure secondary circuit (pool water) is 5 bar and primary circuit (hot water) is 10 bar. Suitable for pools up to 450 m3
