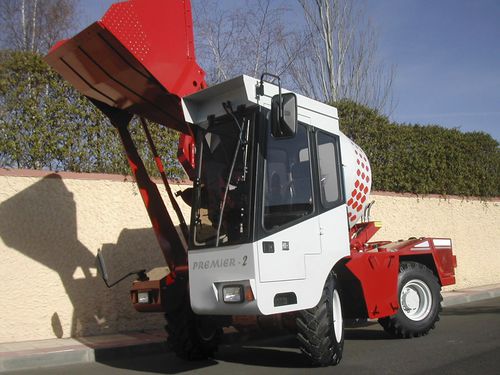

Construction self-loading concrete mixer PREMIER - 2

dieselTier 3

Self loader Mixer with a maximum capacity of 2 m3. Monoblock incorporates a frame, a main chassis where differential shafts, reducing translational and diesel, plus sobrechasis wherein the hype, reducing rotation and rotation motor are mounted is mounted. Deutz diesel engine, TD 2012 L40i model 138 hp TIER III compliant (COM III), 4-cylinder turbocharged and is cooled by air-oil. It has a progressive reduction for forward and reverse speed, 4-wheel drive, front, closed and glazed cabin, two steering axles and swivel 270 degrees Cuba for download at any point around the machine. Concrete output: 2m3 Engine: DEUTZ TD 2012 L04i Engine power: 138 CV Cabin: ROP - FOPS Weight (with empty drum): 5.800 Kgs. Measurements: 6.480mm x 2.250mm x 2.870mm Drum turn: 270º Axles weigth capacity: 2.500 Kgs Height offloading: 900 mm - 1.000 mm Pouring Chute: Optional
