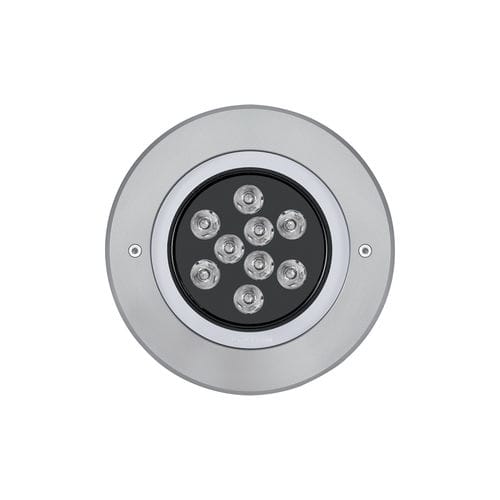

recessed floor spotlight / indoor / outdoor / LED
MEDIO Platek s.r.l.

{{requestButtons}}

Characteristics

  • Type:

    recessed floor

  • Location:

    indoor, outdoor

  • Light source:

    LED

  • Shape:

    round

  • Material:

    aluminum, stainless steel

  • Market:

    commercial, home

  • Other characteristics:

    waterproof

  • Protection class:

    IP68

Description

MEDIO. Platek’s landmark recessed ground lighting. The collection has been renewed, the new lighting sources and treatments adopted make these products highly reliable and able to offer great quality assurance. MEDIO offers high performance and lighting power, it is ideally suited for uplighting important surfaces in terms of width and height and tall trees with large branches. Its thickness is quite contained and the product has a minimal protrusion from the ground or wall surface. The family has been enriched with the Full Inox version that provides even greater resistance to scratching and foot traffic.

TECHNICAL INFORMATION
Full Inox version: Body and closing ring made in AISI 316L stainless steel. A4 stainless steel screws.
Aluminium version: Body and closing ring made of die-cast EN 44100 aluminium alloy. Protection with anodizing treatment, epoxy powder base coating and polyester painting. A4 stainless steel screws.
Family details: IP68 protection rating with
Full Dry system preventing condensation inside the fitting. Nylon sleeve to be ordered separately.
Installation in sleeve set in concrete, with a 20-30 cm gravel drain bed. Only an IP68 rated connection to power supply unit can guarantee the IP68 protection rating to the luminaire.
