Curved slide RACER TWIN TURBOLANCE
for water parktubular

curved slide
curved slide
curved slide
curved slide
curved slide
curved slide
curved slide
Add to favorites
Compare this product


Characteristics

Type
curved
Location
for water park
Other characteristics
tubular
Height

500 mm, 730 mm, 750 mm, 1,400 mm, 1,500 mm
(19.69 in, 28.74 in, 29.53 in, 55.12 in, 59.06 in)

Description

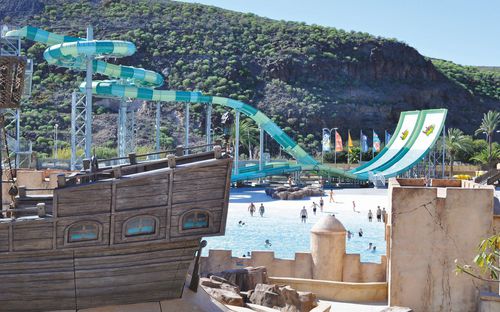

The core feature of Polins latest venture, Racer Twin Turbolance is its innovative design consisting of two double-tubes configured side by side along a circular path. The ride's path is actually two slides in one. The double tubes accommodate two riders in each for a total of four, making it a high capacity ride. The path takes exciting twists and turns before reaching an enclosure that suddenly plummets riders down a nearly vertical drop at speeds of up to 52 kilometers per hour. The double-tubes diverge at this point into 2 Turbolances and then the riders are propelled uphill vertically. Then they experience an unforgettable reverse path taking them over a bump and ending into a splash pool or a dry-out. Depth 500 / 750 / 1500 / 1400 / 730mm (20 / 30 / 59 / 55 / 29 in) Width 2x1400 / 1400 / 6000 / 4000mm (2x55 / 55 / 236 / 158 in) Slope 10/40 % Max. Capacity 120x4 Riders/h Dispatch 30 sec. Mats No Tubes Yes Rafts No Exit Pool or Run-Out Magic Shine (RTM) Applicability Yes Natural Light Effects Applicability Yes Special Pattern Effects Applicability Yes Tranclucency Applicability No Flow Rate 560 m3/h (2466 USGPM)
