NEXT EVO CW S & K series represents the evolution of the previous series NEXT EVO CW,
with better performances on the overall product range:

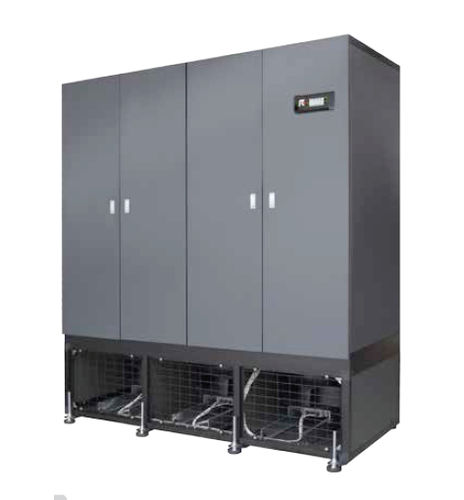

NEXT EVO CW S PLUS: Packaged close control air conditioners with variable air flow, for chilled
water feeding with separate supply fans section.
This series is offered in 4 models, all available only in downflow version. The downflow version
(Under) is characterized by air intake from the top and air delivery from the bottom of the unit.
The sections are supplied separately and have to be connected during units installation.
The first section contains air filters and cooling coil, the second the supply fans.
The supply fans section is to be installed in the floor void and, with the simple shift of the
paneling, you can obtain the air delivery from the front or from the rear of the unit.
Cooling capacity: 125 ÷ 225 kW
NEXT EVO CW K PLUS: Packaged close control air conditioners with variable air flow, for chilled
water feeding with separate supply fans section. This series is characterized by high cooling
density with an increasing of the heat exchange surface of the cooling coil.
This series is offered in 4 models, all available only in downflow version. The downflow version
(Under) is characterized by air intake from the top and air delivery from the bottom of the unit.
The sections are supplied separately and have to be connected during units installation.
The first section contains air filters and cooling coil, the second the supply fans.
