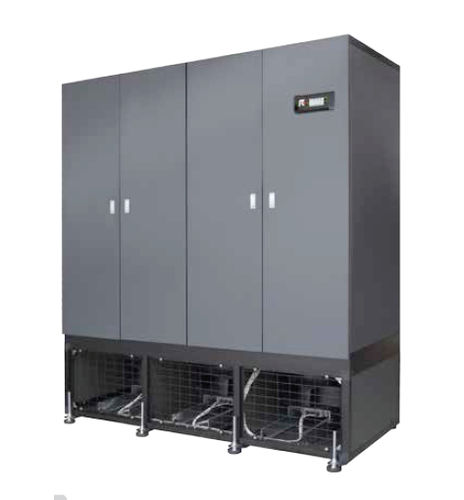

Floor air conditioning unit NEXT EVO CW PLUS.

monobloccommercialfor data centers

Suitable for hi-tech and comfort applications. The machines are made for indoor installation. The constructive solutions and the internal lay-out allow high application flexibility and the frontal access to the main components for the inspection and routine maintenance. Machines supply fully assembled with control systems. The installation requires electrical and hydraulic connections only allowing high costs and time reduction. Final assembly on all machines before shipment including running test, reading and monitoring of operating parameters, alarms simulation and visual check. SERIES IDENTIFICATION UNDER VERSION Air suction from the top and downflow air delivery. NEXT EVO CW PLUS: Close control air conditioners for chilled water feeding with separate fans section and equipped with Plug-fans with brushless type EC electric motor. Cooling capacity 114,0 ÷ 248,0 kW Design, assembly and test as per the Company Quality Assurance program in full compliance with ISO 9001. RC Group has been the first Italian company in its segment to get the ISO 9001 in October 13th, 1991 with certificate ICIM 0018. The machines are in full compliance with European Norms 2006/42CE, 2006/95CE, 2004/108CE, 97/23CE and subsequent amendments.
