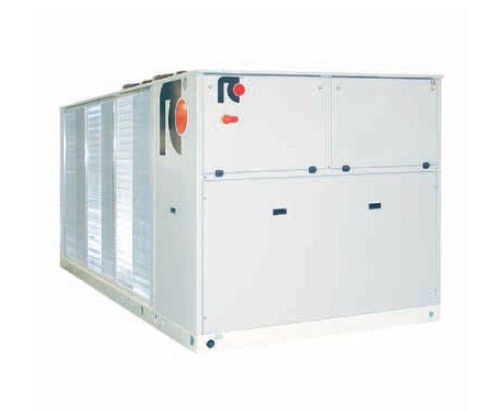

Packaged heat-pump air cooled liquid chiller suitable for outdoor installation.
Available in basic and ELN (extremely low noise) versions (U-N size only).
Full compliance with CE Directives and Norms.
Design, manufacturing and testing according to ISO 9001.
Cooling capacity: 48 ÷ 316 kW (U-N size)
Cooling capacity: 394 ÷ 501 kW (V size)
Main components
Housing and base made of epoxy painted galvanized steel sheets / profiles.
Units equipped with:
- direct driven axial fans
- Scroll compressor/s
- water to gas plate type heat exchanger
- technical compartment separate from the air flow (EASY U-N)
- modulating condensing control
- anti-freeze system
- water flow control by differential pressure switch
- pump-down stop system
- MP.COM microprocessor control system
- IDEA® defrosting system
- cycle reversing valve
- electrical box in separate compartment
- main switch with door lock safety
- R407C refrigerant
Power supply: 400V/3/50Hz + N (U5/U6)
Power supply: 400V/3/50Hz (U7/N8/N9/V2/V3)
