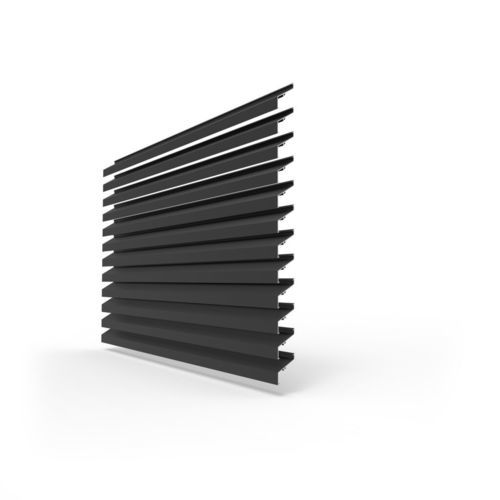

Strip cladding LINIUS® L.050.25aluminumgypsum plasteralloy
Add to favorites
Compare this product
Characteristics
- Configuration
- strip
- Material
- aluminum, gypsum plaster, alloy
- Finish
- ribbed
Description
Heavy-duty extruded aluminium profile at 50 mm pitch with very high air flow. Often to be found where the blade pitch reflects the aesthetics of the overall project design.
Materials
Aluminium extrusion, alloy EN AW 6063 T66
Finish
- Anodised (20 micron)
- Polyester powder coating RAL or Syntha Pulvin® colours (60 - 80 μ/40 μ (UK))
Mesh
Fixed to rear of the support structure.
Doors
Single and double doors available with standard RENSON® hardware and rotating
on pivot
Blade support
Single blade support: type L.050.110
Double blade support for thermal expansion: L.050.120 (connecting piece for 2 blades)
