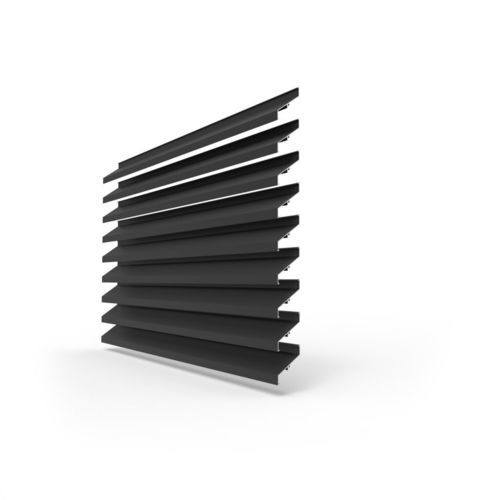

Heavy-duty extruded aluminium profile at 66 mm pitch with high air flow. The largest of the “small” format louvres retaining high air flow characteristics whilst providing a significant degree of weatherability.
Materials
Aluminium extrusion, alloy EN AW 6063 T66
Finish
- Anodised (20 micron)
- Polyester powder coating RAL or Syntha Pulvin® colours (60 - 80 μ/40 μ (UK))
Mesh
Fixed to rear of the support structure.
Doors
Single and double doors available with standard RENSON® hardware and rotating
on pivot
Blade support
Single blade support: type L.066.11
Double blade support for thermal expansion: L.066.12
(connecting piece for 2 blades)
Blade support for variable pitch:
- single: type L.066.13
- double: type L.066.14
