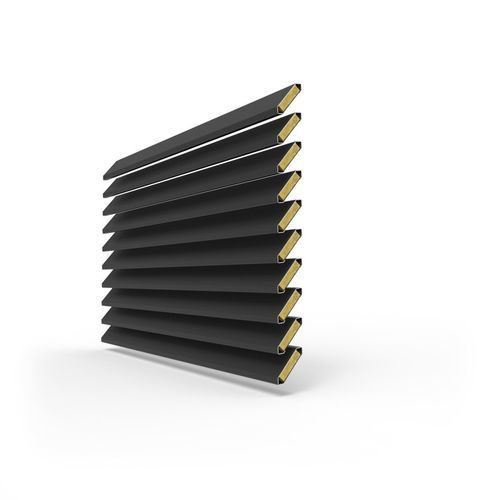

Strip cladding LINIUS® L.060AC

aluminumgypsum plasterPVC

Extruded aluminium profile with a pitch of 60 mm and perforated back; maximum blade length of 6,000 mm. Blades packed with inorganic mineral wool for acoustic performance. Developed to provide an aesthetic solution for noise reducing continuous louvre applications. Materials L.060AC : extruded aluminium, EN AW-6063 T66, mineral wool, perforated PVC strip. Finish - Anodised (20 micron) - Polyester powder coating RAL or Syntha Pulvin® colours (60 - 80 μ/40 μ (UK)) Mesh Fixed to rear of the support structure. Doors Single and double doors available with standard RENSON® hardware and rotating on pivot Acoustic properties L.060AC: Rw (C;Ctr)= 6 (1;-2) dB Blade support L.060AC : single blade support: type L.060AC .11 Double blade support for thermal expansion: L.060AC .12 (connecting piece for 2 blades)
