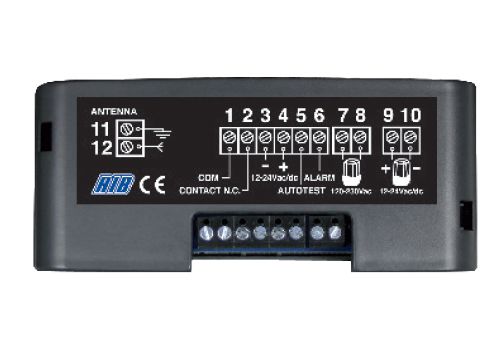

Access control photoelectric cell NO TOUCH 868

Photocell operating completely by radio • NO TOUCH 868 is the first photocell of the world operating completely by radio where both the transmitter and receiver operate with batteries, fittable directly on the mobile part of sectional garage doors and rolling shutters. For this reason It is not necessary any connection to the control board • NO TOUCH 868 is directly applied to the moving door and moves towards the inside when the door is about to touch the ground • NO TOUCH 868 prevents impact and is therefore an effective replacement for sensitive borders because it does not require impact tests as per EN12453 regulation The receiver of the photocell signals to the MASTER NO TOUCH 868 when the batteries are discharged (about a week before). MASTER NO TOUCH 868 emits an acoustic warning for 1 minute each time the system receive a command The batteries last for 3 years if set at a 5m range and 1 year if set with a 10m range The range of the infrared signal of the photocell is adjustable at 5m and at 10m The range of the radio signal of the photocell is above 20m • NO TOUCH 868 is a certified EN13849-2: 2008 safety device and together with a RIB control panel equipped with strip self-test, it is a Class 2 safety device The firmware is certified according to EN61508-3: 2001 Every NO TOUCH 868 has an unique code set by the factory to avoid disturbances between the nearby safety devices The management of the NO TOUCH 868MHz photocells is handled by the MASTER NO TOUCH 868 MASTER NO TOUCH 868 is compatible with any brand of electronic stations equipped with blinker output
