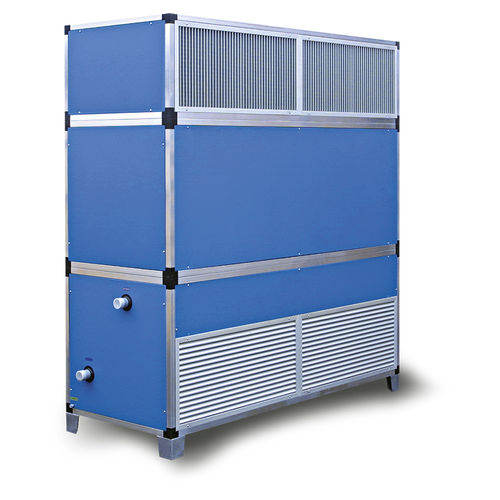

Industrial air handling unit ZEUS

The Zeus air handling units are suitable for cooling and heating civil and industrial environments. They are available in 6 horizontal models and in 6 vertical models, with air flow-rates from 5,000 to 25,000 m3/h. Heating capacity from 32 to 260 KW, cooling capacity from 17 to 160 KW. The units are made up of a extruded aluminium section bar frame, and double panelling filled with a 25 mm thick layer of high-density (90 kg/m3) rock wool insulation that guarantees, as well as high safety standards in the event of fires (no toxic fumes are released), excellent noise abatement and a very high degree of thermal insulation, minimising dispersions to the outside. The metal plate used to make the panels is galvanised, and pre-painted blue on the outside of the panel. Each unit can be easily dismantled and reassembled on site, changing the direction of air flow according to specific needs. The special construction allows the heat exchanger coil and the fan assembly to be easily inspected and removed. Casing: made of an extruded aluminium frame with black fibreglass-reinforced nylon corner joints, and 25mm thick sandwich panels. The panels are made by joining two sheets: galvanised plate for the inner panel and galvanised plate painted blue (RAL 5012) for the outer panel. The sandwich panel is filled with a layer of high-density (90 kg/m3 ) rock wool, fire resistant class A1 according to DIN 4102 standards. Fan assembly: is made up of fan, motor and transmission, fitted on a special mount suspended on rubber anti-vibrating elements, and with anti-vibrating joints at the fan outlet.
