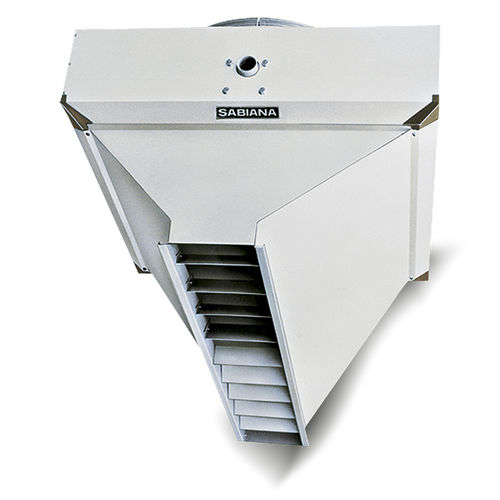

Ceiling-mounted air curtain ATLAS STP
industrial

ceiling-mounted air curtain
ceiling-mounted air curtain
ceiling-mounted air curtain
ceiling-mounted air curtain
Add to favorites
Compare this product


Characteristics

Installation
ceiling-mounted
Sector
industrial

Description

The ATLAS STP thermal barrier system, supplied with hot water, are fitted with special diffusers that create a curtain of hot air. Installed above the door, they deliver a constant vertical flow of air, representing a barrier that, by thermodynamic effect, stops the infiltration of air from the outside, and mixes the residual cold currents. Available in three sizes, with one speed and 1, 2, 3 row coils. • The main casing is manufactured from galvanized prepainted steel finished in light grey colour (RAL 9002), and is assembled from three component parts, which are assembled using self-tapping screws in order to allow quick maintenance on the coil. • Fishtail diffuser produced from steel sheet with manually adjustable louvres for individual requirements. • Coil manufactured from high quality steel or copper tube 22 mm of diameter to reduce resistance with mechanically bonded aluminium fins for high efficient heat transfer. Available in 1, 2 or 3 rows. • Consists of aluminium helicoidal blades statically and dynamically balanced with a cast alloy hub, keyed into the motor shaft and mounted onto the casing with antivibration rubber mounting blocks. The motor is supplied as standard for a three phase, 400V 50Hz, class B, IP55, 6/8 poles two speed: 900 r.p.m. (6 poles) or 700 r.p.m. (8 poles).

Catalogs
