folding partition / aluminum / glass / residential
transparent, without floor track

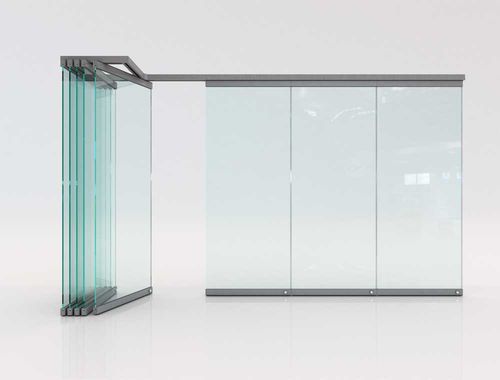

The F6 is a glass folding door system designed for spaces which need a minimalistic and elegant design at both the front and the inside of that space; without glass-board framing, its thin, elegantly designed clamps maximize the glass surface, reducing the construction cost at the same time. The F6 folding door system uses aluminum horizontal profiles clamping the top and bottom of the glass-board. Every pane is secured with lock or floor latches. The dimensions of the glazing can be adjusted considering the floor’s morphology and any other particularities of a project. Moving the panes is easy, with specially designed rollers driven by a rail guide on the ceiling; they are parked in a chosen parking area whose shape can be adjusted to any particularity. Any pane can also be turned into an opening/divertible door, or used as an entrance with the addition of a spring mechanism at the top of the panel. All aluminum profiles can be painted in a wide range of electrostatic RAL colors, anodized or made to look like stainless steel or wood. Sealing between panes is achieved with transparent polycarbonate or aluminum fitments, while sealing between the side-panes and the walls is provided by aluminum lathes bearing synthetic insulative brushes. The dimension of the cross-section of the guide is 60x53(mm), and pane size can reach 100cm in width and 250cm in height (maximum pane weight is 85kg). Every panel uses 10mm tempered glass-boards.
