folding partition / glass / aluminum / residential
transparent, without floor track

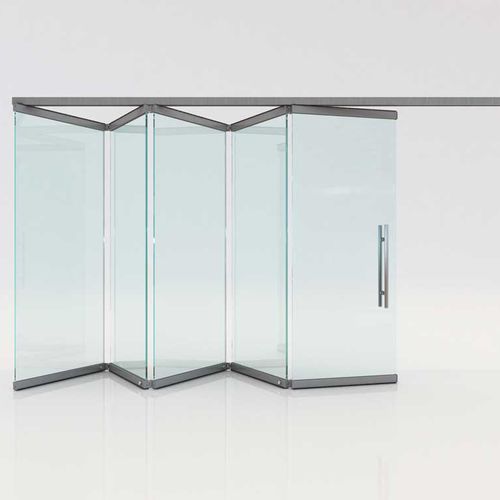

The F6w is a modular system designed for smaller openings, with minimalistic and elegant design features. Every pane is held by upper and lower aluminum profiles, and secured with locks or floor latches. The glazing’s dimensions can be adjusted considering the floor’s morphology and whichever other particularities of the installation. Its aluminum profiles can be painted in natural anodization, stainless steel or wooden texture imitation, or any other electrostatic RAL paint. Water tightness in between panes is achieved with transparent polycarbonate or aluminum fitments, in between the side-walls and the outer panes of the openings it is achieved by using vertical aluminum profiles bearing synthetic insulative brushes. The dimensions of the cross-section of the driver are 60x53(mm), while pane size can reach 90cm in width and 220cm in height (maximum pane weight at 50kg). Every pane bears 10mm tempered glazing.
