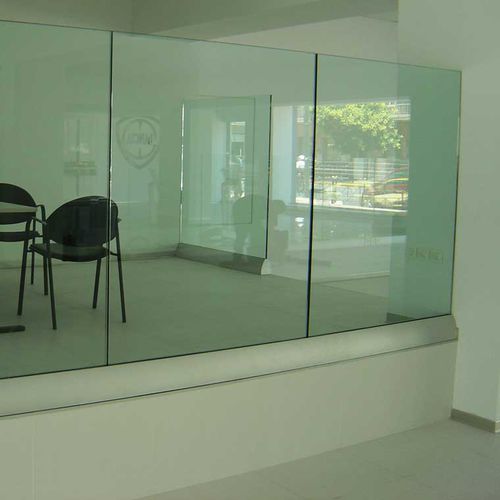

glass railing / aluminum / glass panel / indoor
SB 1210 Salinox

{{requestButtons}}

Characteristics

  • Material:

    glass, aluminum

  • Configuration:

    glass panel

  • Location:

    indoor, outdoor

  • Applications:

    for stairs, for balconies

Description

Innovative glass-board mounting system without the need for vertical supporting components, using aluminum mounting profile 120x100mm in size, for the creation of glass parapets installed directly onto the flooring by using a uniform guide which facilitates installation and offers a uniform finish, thanks to the embedded elastic gasket inside the covering profile. It vertically supports glass-boards, 20mm in thickness, laminated or laminated tempered, transparent or bearing colored membrane, without any holes or notches. Replacing the glass-board is easy, without causing any damage to either the system or the flooring. The end height of the railing can reach up to 110cm. The glazing can have a special finishing or bear aluminum handrails. The mounting base can be covered with aluminum caps of oval and rectangular shape, which can be anodized (natural anodization or stainless-steel imitation) or electrostatically painted in any RAL color. Mounts are detachable, made of EN AW 6060 T66 aluminum alloy and are anchored at specified distances from each other onto stable ground with metal plugs M10 to M12 made of galvanized or stainless steel.
