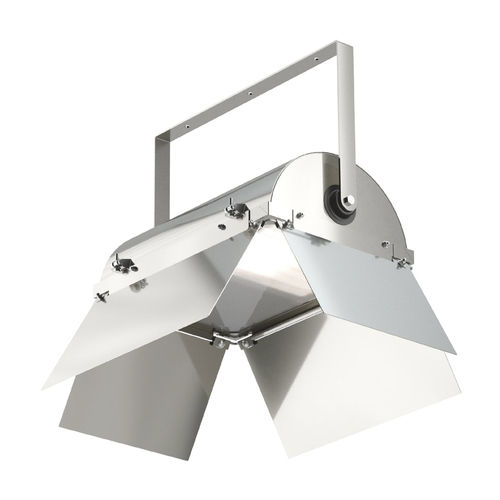

IP65 floodlight BRECHT

compact fluorescent lampindustrialspot

Ceiling light fittings-industrial floodlights Technical data Light source 1 x Gx24q compact fluorescent lamp, not included Optics Reflector in mirror finish aluminium : • Intensive (narrow beam) • Extensive (wide beam) Light comfort • 4 barn doors with directional adjustment mounted on the frame • Stainless steel internal louvre grill (GRD version) Control gear Hot cathode electronic gear unit (EEI A2) Rapid installation Connection • With nickel-coated brass cable gland for cable Ø 5 – 14 mm • To 3 x 2,5 mm² terminal block Fixing • Swivelling stainless-steel fork • Fixing at three points (3 holes Ø 8,2 mm) Easy maintenance Relamping • Access to the lamp by opening the front • Tilting frame on 2 stainless steel hinges Control gear • Articulated gear tray • Easily removable ballast Materials and finishing Semi-cylindrical housing 304L stainless steel Bracket, frame 304L stainless steel Protective cover Tempered glass Gaskets Silicone Technical data Power supply 220-240 V 50/60 Hz Electrical class Class I Operating temperature -20 °C to +30 °C Imperviousness IP65 Shock resistance IK07
