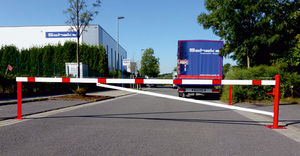

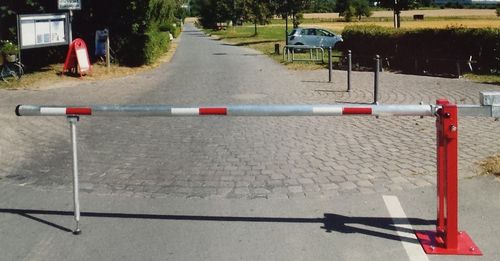

Access barrier
Main support: Steel construction 70 x 70 mm square tube with ground plate
360 x 360 x 8 mm for plugging down, including 4 holes Ø 20 mm for anchor, hot-dip galvanized and powder-coated red
Barrier arm: Thick-walled Ø 80 mm aluminium tube with counterweight, uncoated with white/
red reflecting stripes
Swing post: Aluminium tube with foot
Locking mechanism: At the main support with a locking pin, for fixing the arm in open or
closed position
Total width: Clear width + approx. 900 mm
Height: approx. 950 mm above ground
