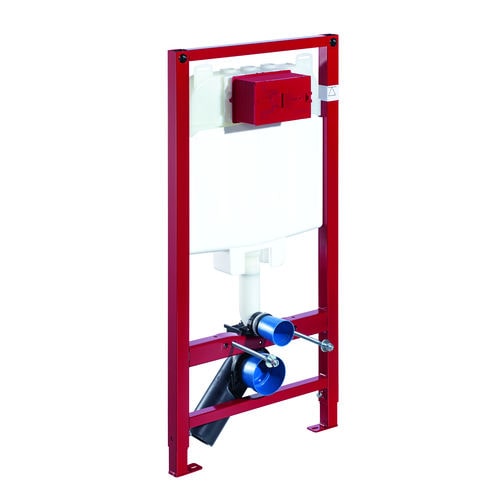

Mounting module with concealed cistern
mounting module for stud partition or exposed Installation
self-supporting steel profiled frame with height adjustable feet, surface powder coat finish
with pre-mounted SCHELL concealed cistern.
The activation of the dual flush takes place via SCHELL WC operating panels.
water saving: delayed filling process saves appr. 0,5 l/ flush
SCOPE OF DELIVERY:
mounting element height 115 cm
fitting connection R 1/2 ext. thread, above
WC concealed cistern 80 mm, operation from ahead
dual flush
mounting feet adjustable in height 0 - 200 mm
fastening material for mounting feet
SCHELL regulating angle valve, filling valve, noise class I
flush pipe Ø 45 mm, with plug
PP-arch of discharge Ø 90 mm, with plug
reducer Ø 90 / 110 mm
WC connection fittings Ø 90 mm
WC bolts M 12 x 200 mm, with protection hose, nuts and cover caps
