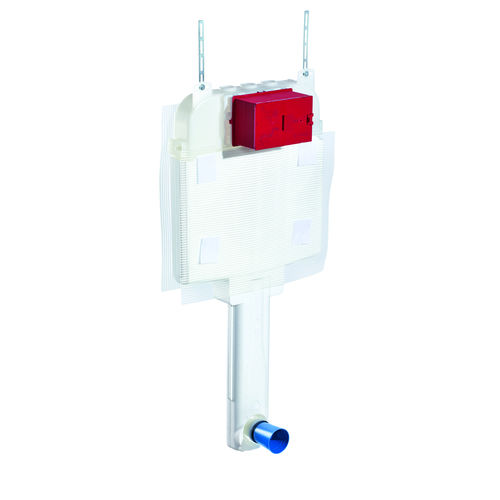

SCHELL concealed cistern without frame
mounting module for brickwork
The activation of the dual flush takes place via SCHELL WC operating panels.
water saving: delayed filling process saves appr. 0,5 l/flush
SCOPE OF DELIVERY:
concealed cistern without frame for brickwork
fitting connection R 1/2 ext. thread, above
WC concealed cistern 80 mm, operation from ahead
dual flush
SCHELL regulating angle valve, filling valve, noise class I
flush pipe Ø 45 mm, with plug
plaster base mat
FIELD OF APPLICATION / TECHNICAL DATA:
factory setting: 3 and 6 l
small flush volume: 3 / 3 l
large flush volume: 6 / 7 l, on demand 5 l
DETAILS:
Test Mark: certificates on request
Weight: 3.7 kg/pc.
Packaging unit: 1
Dimension: DN 15 R 1/2 ext. thread
